Solar System Formation
In recent years, we have seen huge advances in both observation and theory of solar system formation.
Increased telescope resolution has allowed us to begin to see
extrasolar systems in various stages of evolution. The image to the

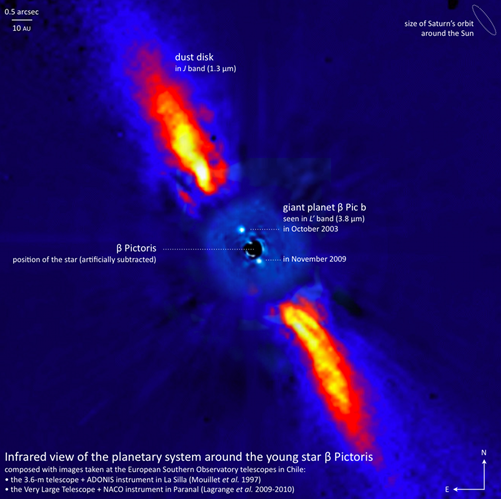

right of Beta Pictoris was taken by the
Very Large Telescope
at the European Southern Observatory and shows the debris
disk surrounding the young star, complete with a visual image
of a gas giant planet orbiting the star. Also increased computational speed and power has
allowed us to model systems at much higher resolution than before, and include
more detailed physics in our models.
Our own solar system offers us our best, closest model for understanding
how the constituent parts shed light on how the system must have formed.
However, since the discovery of extrasolar planets
in 1988, we have found over a thousand multiple planet systems. Our
theory about how solar systems formed now needs to work for these
other systems as well.
Model requirements
Our own
Solar system
consists of a central star with several planets (model
not to scale).
There are also comets and an asteroid belt, not shown in the animation.
Based on what we observe in our solar system, our theory of its formation
needs a few key ingredients.
- Planets are relatively isolated in space.
- Plane orbits are nearly circular.
- Planet orbits roughly lie in the same plane.
- Orbits of the planets and their moons are generally in the same sense as
the rotation of the sun.
- Rotation of the planets and their moons are generally in the same sense as
the rotation of the sun.
- We see two kinds of planets, small rocky terrestrial planets and gas giants.
- There is an asteroid belt between the terrestrial planets and gas giants.
- There is a belt of icy objects beyond the gas giant planets (Kuiper belt).
- There a cloud of icy objects beyond the Kuiper belt.
Any model we construct must explain these characteristics. The fact that the sense of rotation
seems to be the same, in general, for the bodies in the solar system suggests that
it was formed from one large, rotating cloud. This theory is called the "solar nebula" theory.

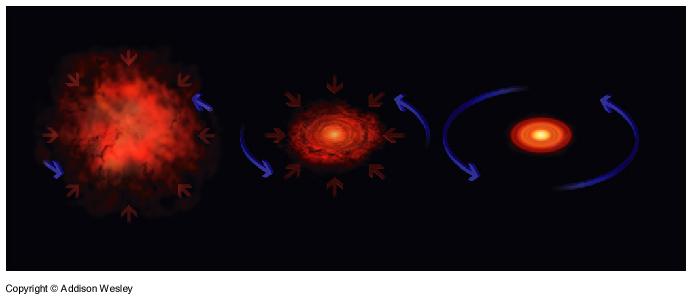

As the nebula contracted under the pull of the gravitational force, its rotation tended to
flatten it into a disk of material.
One of the open questions in the theory concerns how so much of the matter of the disk ended up in the star.
There should have been only a few percent of the material lying over its
rotational axis, yet in our solar system, the sun contains about 99% of the mass.
Temperature effects
To answer the question of why there are two kinds of planets,
terrestrial planets and gas giants, we need to consider the temperature of the protoplanetary disk.
The disk would be considerably hotter in the inner region.

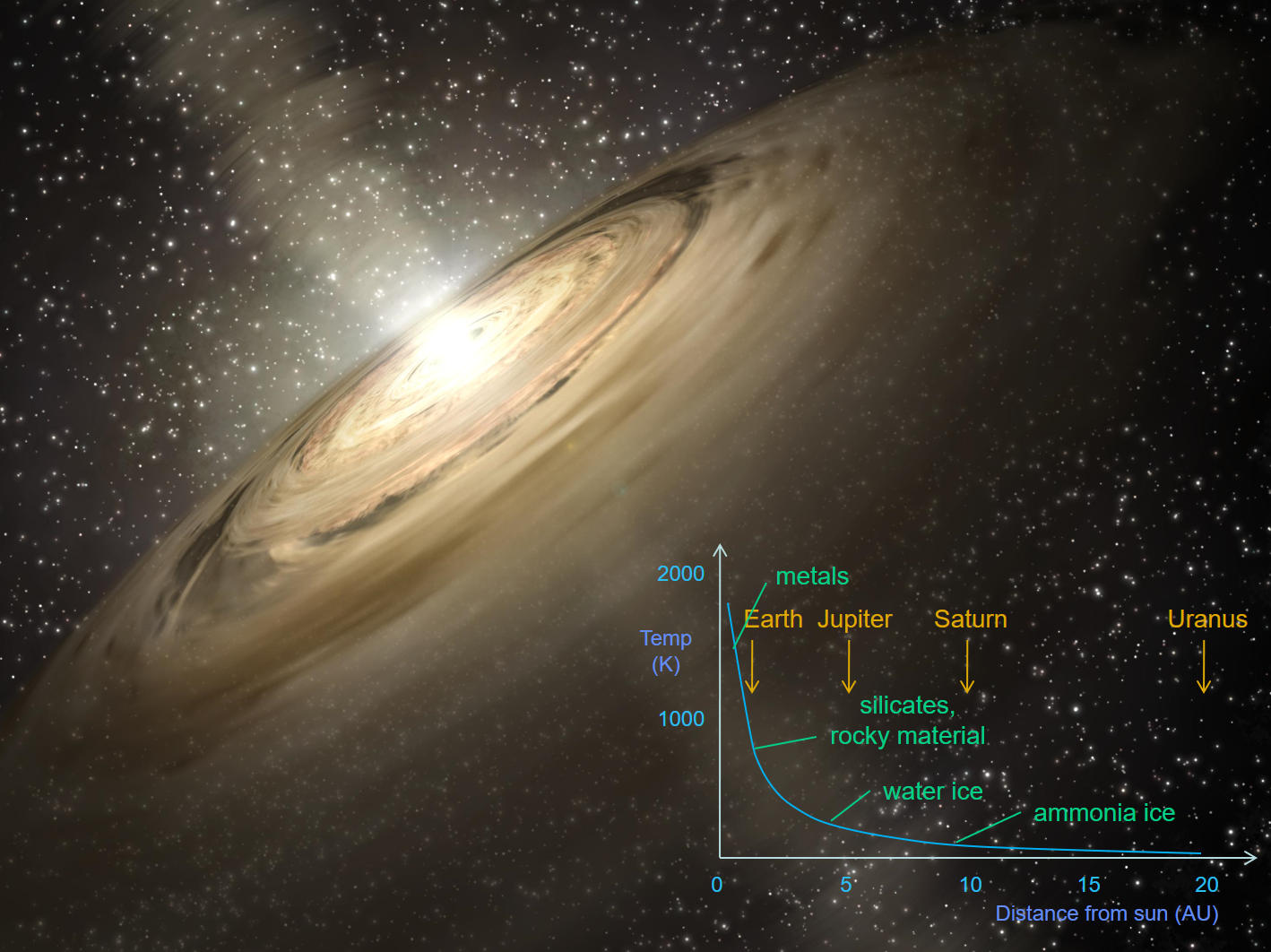

This illustration includes a plot of the temperature of the protoplanetary disk with respect to distance in
astronomical units (AU). An astronomical unit is defined as the distance between the sun and earth.
Notice that the temperature is very high at 1 AU but the curve falls off rapidly by the time it gets
to Jupiter.
In the inner region where the terrestrial planets formed, the temperature would allow metals and rocky materials
like silicates to condense, but it would be far too hot for materials like water and ammonia to condense.
Farther out in the disk where the temperature was lower, the volatile materials could condense.
This is much like what we call the "snow line" on earth. Often times, it is warm enough to rain in the valleys
but cold enough to snow above a certain elevation. Astronomers also use the term "snow line" to describe
the distance outward from the center of the protoplanetary disk where the temperature dropped
low enough for the ices to form.
Core accretion theory
Image source
Core accretion thoery is simple in concept. Small granules collide and stick together via the electromagnetic force,
eventually increasing in size and mass to form protoplanet cores. Once the core gets massive enough, it
begins to gravitationally attract dust and gas from the surrounding material to grow even more.
The process stops when fusion begins in the new star. Then, strong stellar winds sweep out
dust and gas from the disk, leaving behind only the more massive chunks of material.
Until recently, there has been a problem with the core accretion theory,
that it would take far too long for a planet to form in this way.
Recent advancements in modeling include more physical aspects, like the accretion
of small pebbles onto the core (Lambrechts 2012), reducing the formation time.
Gravitational instability theory
Image source
Gravitational instability theory involves waves that sweep around the protoplanetary disk,
much like the compression waves that cause the formation of spiral arms in galaxies.
The geometry of the disk tends to support characteristic waves, similar to standing waves.
We can start to build an understanding of this mechanism by considering a wave on a string.
This interactive
PHet simulation
allows us to investigate a simple wave on a string.
We can visualize
standing waves
to get an idea of how this works (animation courtesy of Dr. Dan Russell, Grad. Prog. Acoustics, Penn State).
The drumhead simulation demonstrates how various two dimensional standing waves
are supported, depending on the shape of the drum and nodes in the wave. A
Chiladni plate demonstration
shows how even more complicated standing wave structures can be supported by a plate.
Notice how the standing wave patters depends on the shape of the boundaries of the plate.
Now imagine a similar system, with characteristic waves, but the system in this case
is a huge disk of dust and gas, held together by gravity and supported by pressure,
rotating differentially (at different speeds for different radii).

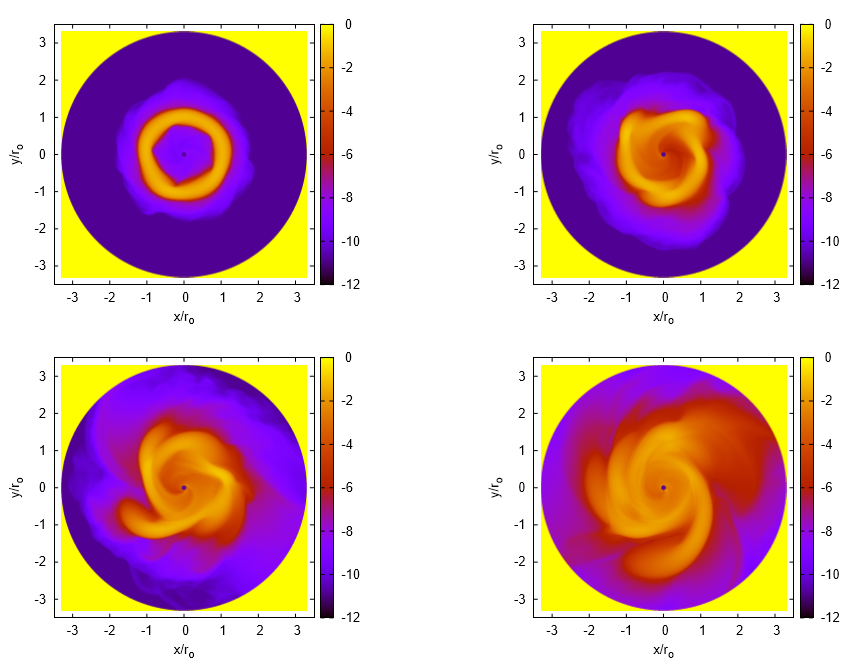

This set of images shows stages of evolution of a simulation of a protoplanetary disk.
A movie of another disk evolving is shown below.
simulation mp4
This of gravitational
instability in a star-disk system shows an initially stable disk driven unstable by the
interplay of gravitational force, pressure, and rotation. This model has a very high rate of cooling,
so is not realistic, but it does illustrate clumping in the disk. In the gravitational instability
theory, these clumps could contract to directly form planet cores from disk matter.
Gravitational instability also provides a means to transport matter inward from the disk to the star.
Vortex instabilities are another kind of instability that may prove insightful. They are cyclones and
anticyclones that can form in a disk, much like hurricanes form in our atmosphere.
Two streams of fluid moving next to each other can form swirls, as see in this
jet simulation.
General theory
Solar system formation timeframe
To recap, solar system formation begins with a collapsing fragment of a giant molecular cloud.
The fragment spins up as it collapses under gravity and flattens into a differentially rotating
disk of dust and gas. Temperature differences cause condensation
of metals in the inner disk, while ices are able to condense in colder outer regions of the disk.
In the core accretion scenario, dust grains accrete into planetesimals which grow into planet cores.
Gas giant planet cores grow large enough to gravitationally attract gas from the surrounding disk.
In the gravitational instability scenario, clumps of gas form in the disk to form protoplanets.
Dust grains sink to the center of the protoplanets to form cores. In either case,
when fusion begins in the star, stellar wind blows away dust and gas, leaving protoplanets.
Protoplanets continue to collide and form larger bodies until a relatively small number of planets
remain in the solar system. Minor planets like Pluto, and comets, reside in the outer part of the system.
This animation
illustrates a young system, showing the newly formed planets.
Observation
The formation of a solar system takes millions of years to occur. We cannot hope to gain understanding
about the process by watching one form in real time. We can, however, look for evidence of many solar systems
in various stages of formation in our galaxy. Our technology is beginning to be able to see such systems.
We will zoom in on a star forming region of the Eagle nebula to illustrate.
Eagle nebula
Eagle nebula closer
Eagle nebula closeup
This animation
from Hubble telescope scientists shows what it might look like to fly through a star-formation region.
The greenish streaks and splotches in this infrared image of the
NGC 1333 Perseus nebula
from the Spitzer telescope show jets emerging from young stars.
Many observations of circumstellar disks have been made, and are cataloged at this
website.
Notably, AB Aurigae
shows spiral arms, indicating gravitational instabilities evolving in the disk.
Our criteria for our theory of the formation of a solar system was taken from our own solar system.
We have now discovered many planets orbiting other stars. How does this new information affect our theory?
First, let's think about how these planets were found.
There are five methods for extrasolar planet detection:
(1) variation in radial velocity of the star, detected via the Doppler shift
(2) planet transit, where the star's light dims as the planet passes between the star and us
(3) direct visual observation
(4) detecting the star's wobble against background stars
(5) gravitational lensing effects
A nice interactive simulation depicting the Doppler shift can be found
here.
The Zooniverse citizen's science site Planet Hunters
page allows you to identify transiting planets using data from the Kepler telescope to measure the
dimming of starlight as the planet passes between its star and us.
NASA's Jet Propulsion Lab (JPL) has put together a nice set of
animations
describing the methods we can use to detect a planet orbiting a star. The JPL interactive
Eyes on Exoplanets
provides a visualization showing locations and characteristics of extrasolar systems.
So how can we make sense of the information gained to include in solar system formation theory? The
Exoplanet Orbit Database allows us to make plots
of actual data compiled from several sources. Try making a scatter plot of planets' mass vs. separation.
What does this plot indicate? How could you modify our solar system formation theory to account for this
new information? Remember, Jupiter is about 5 AU from the sun.
