Faraday's law transformed



relative fields

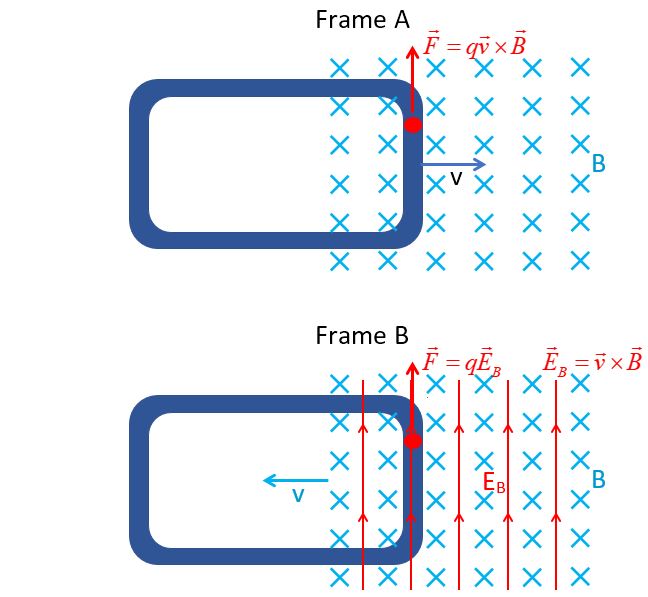

We will now consider the consequences of the relative field transformations on a current loop moving to the right with respect to a magnetic field generated in Frame A. In frame A, the Lorentz force on the charges in the loop creates motional EMF which induces current in the loop.

In Frame B comoving with the loop, the loop appears to be at rest and the region of magnetic field is seen to be moving at speed v to the left. There is no Lorentz force on the charged particles in the loop in Frame B because the loop is not moving. The electric field EB is generated by the motion of the B field.

relative fields

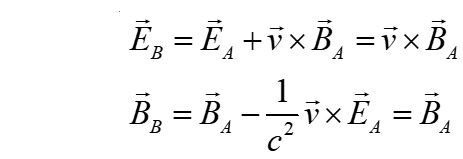

We can determine the E and B fields in Frame B using the transform equations. The B field is the same as that generated in Frame A. The E field in Frame A is zero, so the E field in Frame B equals the cross product of v and B. The force that causes the current in the loop arises from the E field generated by the relative motion of the frames.



Ampere's law and displacement current

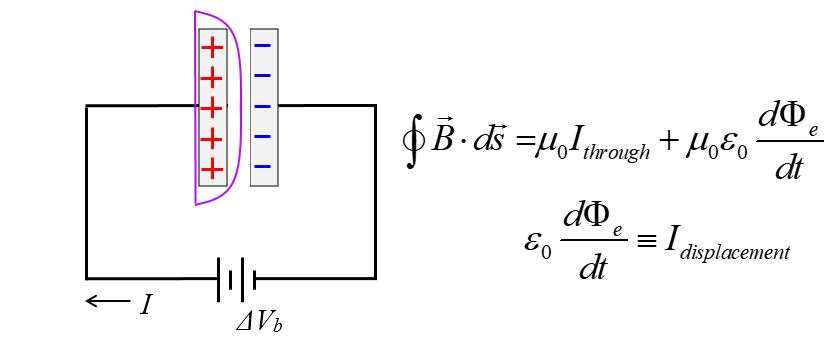

displacement current diagram

Ampere's law states that the line integral of the B field around a closed loop equals the enclosed current. To satisfy the general case to include the case of a charging or discharging capacitor, we extend the definition of enclosed current to include the "displacement current." The displacement current is not a current in the usual sense, there is no charge flowing, rather it is the temporally changing electric flux through a surface.

Induced magnetic field


An induced magnetic field is one that is caused by a changing electric field. For example, a charging capacitor has an increasing electric field between its plates. This changing electric field induces a magnetic field inside the capacitor plates.



Maxwell's equations


James Clerk Maxwell was responsible for the generalization of Ampere's law to include displacement current. He combined the work of physicists who came before him with this discovery to formulate a set of equations that, together with the Lorentz force law, describe the behavior of electric and magentic fields.

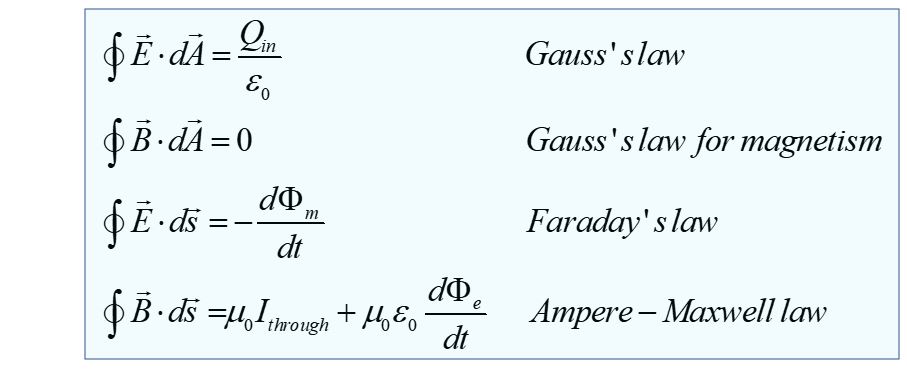

Maxwell's equations

Here, we have included the magnetic equivalent of Gauss's law for electric fields. It is basically a statement of the fact that there are no magnetic monopoles. A closed Gaussian volume in a region where there is a magnetic field present has just as much magnetic flux entering as exiting. It is impossible to have a nonzero net flux leaving or entering because that would imply a magnetic monopole must reside within the volume.
