Torque

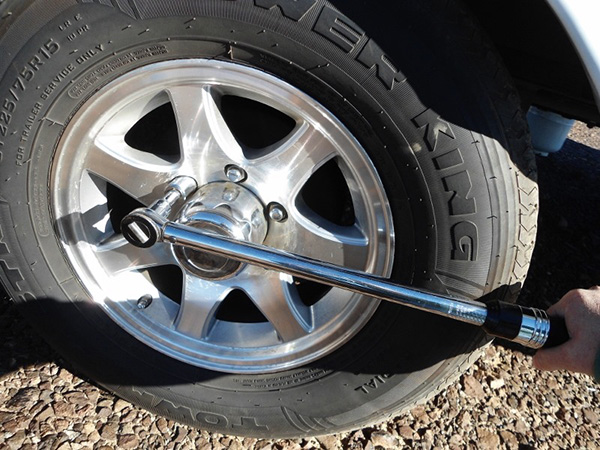

Torque is the rotational equivalent of force.

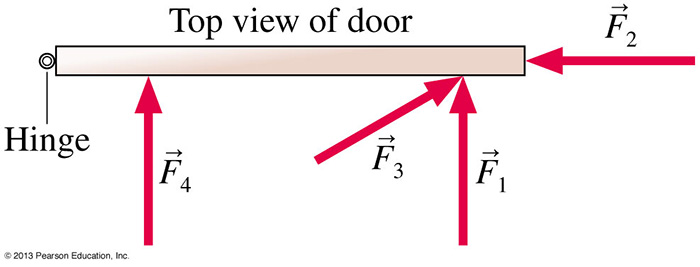

Four forces push against a door. If the magnitudes of these forces are equal, which results in the largest torque?

© 2005 Pearson Prentice Hall, Inc

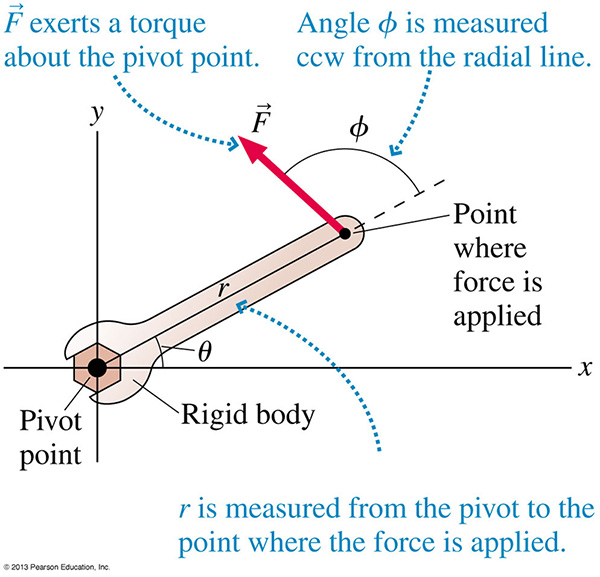

The diagram above is similar to a free-body diagram but it includes more information; it shows where the forces are applied. We call this kind of diagram an extended free-body diagram and can use it to analyze systems that have applied torques.

© 2005 Pearson Prentice Hall, Inc

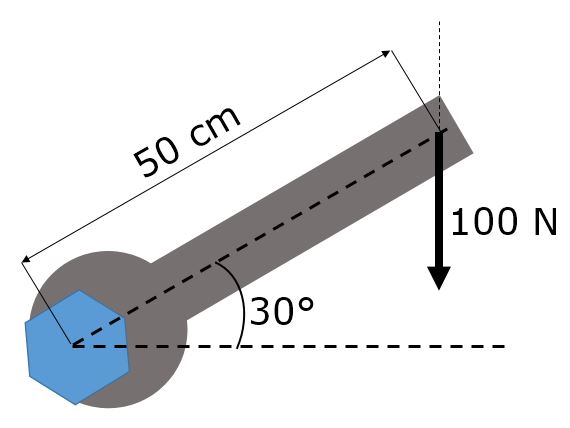

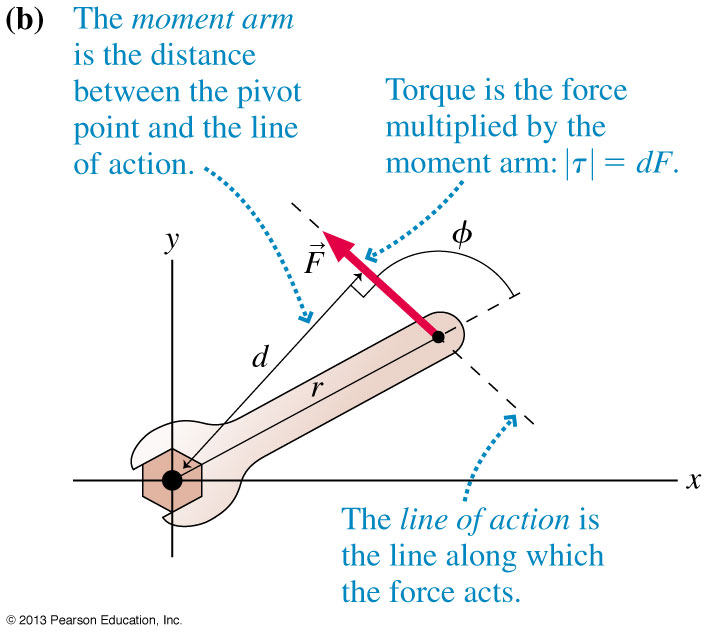

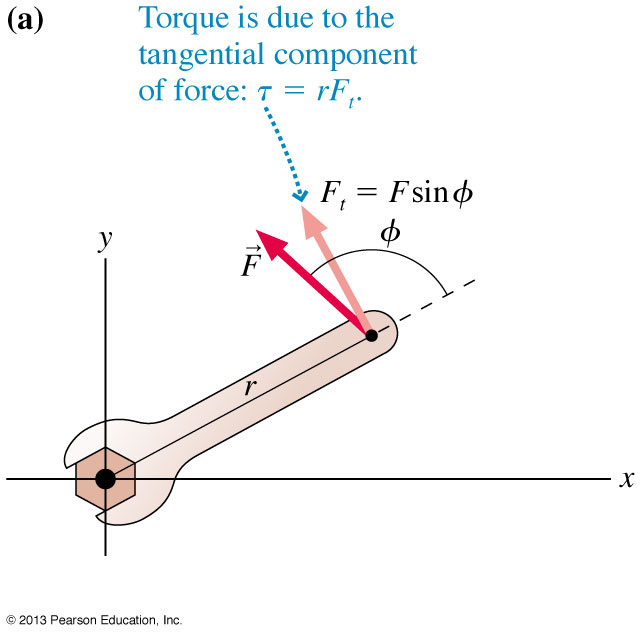

Calculate the torque applied about the pivot point.
